Raising efficiency in agriculture.

Stream Bars Increase Yields And Profits

Nick Scharf Sprayer

Background

Since its introduction in the late 1980's, Intensive wheat management has contributed to a doubling of the Kentucky average state yield (reference USDA state wheat statistics) while states such as Kansas remain almost stagnant. When asked, many Kentucky producers suggest that there are at least 4 factors which contributed to the majority of the yield increases, these include the following:

Burnt wheat

1. Stand Uniformity: Many producers trip over at the starting gate by not establishing a uniform enough stand to generate maximum yields. The concept of placing quality seeds in the soil to the same depth, across the width of the seeding equipment and across the field sounds easy but it’s a big challenge for many producers. While most seeding equipment has improved over recent years (partly through the consulting work of Needham Ag) there are still improvements to be made, especially when it comes to no-till seeding equipment.

Burnt wheat

2. Weed, Insect and Disease Management. Prior to the adoption of intensive wheat management, many producers applied their nitrogen one time in the spring. If weeds were a problem, many producers used to mix liquid nitrogen with the herbicide to save a pass across the field, a practice which was unheard of in many European countries on account of crop damage, antagonism and yield losses. Few fungicides or insecticides were utilized to manage diseases or insects. Now producers are doing a better job positioning varieties, then scouting their fields to determine which products are required on a field by field, variety by variety basis. The crop uniformity improvements discussed in section 1 (above) also helped the performance of the fungicides by allowing them to be applied at the correct growth stages.

Burnt wheat

3. Nitrogen Rates and Timings: There is a now a significantly higher level of understanding when it comes to nitrogen rates and timings. For example, many years of replicated research and field trials have helped growers understand how much N should be applied to each field (or regions within each field) and at which growth stage. These recommendations are based on crop health, tiller density, soil tests and yield potential

Burnt wheat

4. Uniform and Accurate Applications of Nitrogen. Most producers switched to liquid nitrogen many years ago because the standards of uniformity and application rate accuracy couldn’t be matched with the spinning disc fertilizer spreaders they used to use. This has been further improved with the use of tramlines, swath control and auto-steer systems on sprayers which almost eliminate the doubled up areas on the ends of the field which often used to lodge. Many producers also found that liquid nitrogen provided higher yields compared to dry fertilizers such as urea. Research from Ontario reinforces these observations: Nitrogen Sources For Wheat.

The Problem

Burnt wheat Burnt wheat

Liquid nitrogen was sprayed on this field of wheat early in the spring with flat-fan nozzles. Plant health was significantly compromised at a time when yields are being determined.

Some producers still apply liquid nitrogen to wheat in the spring with flat fan or flood-jet nozzles. Even when the wheat is small in the early spring, significant levels of leaf injury can occur. Leaf scorch causes infection sites for foliar diseases and reduces early spring plant health which is critical to the grain site formation process. Yield reductions of sprayed liquid nitrogen applications vary by conditions and nitrogen rates, but 5-10 bu/ac yield losses have been frequently documented. Additional plant injury and yield losses occur when liquid nitrogen and herbicides (especially SU herbicides) are tank mixed and sprayed on cereals in the spring. This practice should be avoided, in fact many producers should consider applying their herbicides in the fall to remove weed pressures before they begin competing with the crop in the spring.

Effect of Herbicide With N
Effect of Herbicide With N
Effect of N Source and Application Method on Wheat Yield at Lahoma, OK

Applying Liquid Nitrogen To Wheat

Liquid nitrogen is an excellent method of accurately and evenly applying nitrogen to wheat crops, in fact The Ministry Of Agriculture And Rural Affairs in Ontario recommends liquid N over urea. Their research (over multiple years) concludes that higher yields result from liquid N applications compared to urea at the same use rates per acre. They do make a point of saying that all of the liquid N was applied with stream bars however, stating clearly that if you want to use liquid N, you should use stream bars.

Some growers still apply liquid N with flat fan or flood nozzles which frequently causes significant leaf injury and yield reductions. An example is provided right. This field had 30 gallons of 28% nitrogen sprayed over the top with flat fan nozzles. Many growers will state the wheat will soon green back up, but the damage is already done and yield is lost.

How Much Yield Is Lost When Liquid N Is Broadcasted?

Lots of yield data is available from many different independent and University research trials to illustrate differences between nitrogen application methods.

One 2008 Kansas State University research trial is illustrated right. This study shows a 9 bushel per acre yield increase when liquid N was applied with stream bars, compared to broadcasting the same N rate (60 lb/ac) with spray nozzles. With $5.00 wheat (for example) that's a $45.00 per acre difference in profit and the nitrogen costs were the same!

Research conducted in 2006 and 2008 by Edwards, Arnall and Zhang at Oklahoma State University states "Plots receiving UAN produced statistically greater yield than those receiving urea. This was likely because sufficient rainfall to move N fertilizer into the soil did not occur for approximately two weeks following application in 2008. This might have created a favorable environment for N volatilization from urea which would have favored the N use efficiency of UAN treatments".

Bill Mullen from Ohio "Do not broadcast UAN solutions past Feekes Stage 5 due to leaf burn. The leaf burn can lead to lower yields, delayed plant growth and possible disease infections later. Instead, use a stream jet bar to apply the solution. Also avoid adding herbicides to UAN solutions because the mix can delay plant growth and reduce yields".


2017 Research

The 2016 replicated trial data (right) represents the second spring application of liquid N (68.5 lb/ac of actual N), which was applied at jointing (Feekes growth stage 6) using the 4 different liquid delivery methods outlined in the bar chart. We consistently see lower levels of leaf injury and higher yields with stream bar applied N, compared to streamer nozzles. If no rain falls within at least 7-10 days of the nitrogen application, we often see a yield benefit to adding Agrotain (or similar products) to the liquid nitrogen to reduce N losses from volatility. Boom heights remained constant within all plots.


2017 Research

The replicated trial data (right) represents the second spring application of liquid N (68 lb/ac of actual N), which was applied at jointing (Feekes growth stage 6) using the different liquid delivery methods outlined. We consistently see lower levels of leaf injury and higher yields with stream bar applied N, compared to streamer nozzles and especially spray nozzles when a herbicide is added. If no rain falls within at least 7-10 days of the nitrogen application, we often see a yield benefit to adding Agrotain (or similar products) to the liquid nitrogen to reduce N losses from volatility. In 2017 no measurable rain fell for 15 days after the N was applied, and we saw a yield response from the Agrotain. We also observed a small yield response to adding 7 lb/ac of liquid sulphur (in the ATS form) to the liquid N. This trial site showed soil sulphur levels in the medium range, so some of this yield response may be associated with reducing volatility. Boom heights remained constant within all plots and liquid N rates were adjusted to ensure all plots received the same total amount of N when the ATS was added.

Effect of N Source and Application Method on Wheat Yield at Lahoma, OK

Kentucky Stream Bar Research - On Winter Wheat

Replicated research from Kentucky (graph to the right) clearly shows the leaf damage reductions and yield advantages of Chafer stream bars, compared to 3 and 7 hole nozzles. These replicated trials over four years show a yield average of 2.8 and 4.9 bushel advantage to the stream bars, compared to 3 hole and 7 hole nozzles when making the second application to wheat in the spring.

The Extra Profit From Using Stream Bars

If a grower has 1000 acres of wheat, that’s a $14,000 and $24,500 advantage to the stream bars, compared to the 3 hole and 7 hole nozzles (data assumes $5.00 per bushel wheat prices and the average yield data from the graph to the right).

Effect of Herbicide With N

Tank Mixing Herbicides With Liquid Nitrogen?

Tank mixing liquid nitrogen and herbicides should be discouraged, as significant plant injury and yield losses can result when they are applied through spray nozzles.

Yield reductions in the order of 5-10% frequently occur as a result of the increased leaf scorch and the accumulated plant stresses during critical grain initiation stages.

Most weeds can be controlled in the fall, which enable straight liquid N applications to be made with stream bars in the spring.

The HRWW research (right) was conducted by Dr. Bob Klein at the University of Nebraska. This data correlates yield loss to percentage leaf injury within a replicated trial environment when liquid nitrogen was tank mixed with a SU herbicide and applied to wheat on April 23rd and May 2nd 1991.

Stream Bars Help Reduce Nitrogen Losses

Loss of nitrogen (N) as ammonia gas (NH3) is known as volatilization. Nitrogen Fertilizers containing ammonia or urea can be lost through volatilization as ammonia gas to the atmosphere. Ammonia volatilization increases with increasing soil pH and pH of the applied fertilizer. These types of losses are greater with urea (46-0-0) than with UAN solutions (28-0-0 or 32-0-0, but losses can still be significant.

There are a number of ways to decrease volatilization of UAN applications:

For Example. Wheat is to be top dressed with 100 lb N/acre using UAN solution applied with stream bars. 50% of the UAN solution contains urea, so in this example only 50 lb N can be potentially lost as NH3. Streaming liquid N results in less potential loss than surface broadcast applications, so under severe conditions (where high volatilization rates are expected), 25% of that 50 lb of N might be lost as NH3. So total N loss under these conditions could be expected to be 12-13 lb N/acre. IF the fertilizer cost is $0.50/lb of N then this relates to a loss of $6-7/acre and this is the figure that should be used to help determine the most appropriate nitrogen application techniques. Remember that this is a "high loss" scenario and that if rainfall greater than ¼ inch occurs within 3 days of N application, losses would probably not be this significant.

Urease inhibitors such as Agrotain, may also be added to UAN solutions (or dry urea) to reduce volatility losses when no rain is forecasted after application. Peer reviewed wheat research conducted by Slaton (et al.) – 2011, includes a statement which reads “Based on these results, averaged across all sites and N application times, the urease inhibitor Agrotain provided a significant, albeit small yield advantage to wheat”.

Another statement within the same research paper states:

“Agronomically, the use of Agrotain to minimize NH volatilization losses from surface-applied urea in winter wheat appears most practical when a suboptimal N rate would be applied or when an optimal N rate is applied under conditions that are known to be favorable for NH volatilization. From an economic viewpoint, the cost of Agrotain is estimated to be $0.065/lb urea N or $4.88 to 6.50/acre assuming 75 to 100 lb N/acre is applied, which makes the input cost recoverable if an average yield benefit of 2 bu/acre is realized”.

Get the full research paper.

Three Hole Caps Three Hole Caps
Three Hole Caps

While 3 hole nozzles are an improvement over flat fan spray tips, they do not apply nitrogen as evenly or accurately as a stream bar.

3 hole caps produce a triangular shaped distribution pattern that's very height sensitive. As the boom raises up, two streams come together to deliver a 2X N rate as illustrated in the image to the right. As the boom is lowered (either intentionally on unintentionally on rolling ground), there may be areas that don't receive any N, as illustrated in the second image to the right. With N prices at record levels, you need to apply the nutrient evenly so each plant receives a consistent quantity, 3 hole caps don't allow this to happen.

Three hole nozzles are also influenced by forward speed and/or wind speed. As producers buy larger and more powerful sprayers, they want to run faster. The pattern produced from the 3 hole caps narrows as effective forward speed increases, so constant changes in boom height are required to compensate for the changing distribution angles.

Burnt wheat

The photo left, illustrates a wheat field which had liquid nitrogen applied using three hole fertilizer caps.

The photo below left, also illustrates a field that had a single application of N delivered with the 3 hole nozzles just prior to green-up. The N was the only application that was made at a 90 degree angle to the drill rows, so the streaks could be easily traced back to the 3 hole nozzles on the 120' boom.

The photo below illustrates a couple of the main stem wheat heads which came from the previously discussed photo. The one on the left came from one of the yellow N deficient streaks and the larger head on the right came from one of the green streaks. Look at the difference in head size and flag leaf health. Based upon spikelet counts, we suggested that yields were halved in the streaks where little to no N was applied.

There are lots of opportunities to increase wheat yields, don't let poor N distribution be one of the weak links.

Stream Bars Stream Bars
Burnt wheat


When applying liquid nitrogen with multi-hole nozzles, most producers have found they are extremely susceptible to wind. Wind can be caused directly from fast forward speeds, or the combination of driving into head winds.

Applying nitrogen within either (or both) of these conditions frequently results in the streams not spreading out sideways, causing a concentrated band of nitrogen to be applied under each nozzle cap, as illustrated within the photo to the left.









Burnt wheat

The photo left illustrates another producer who used 3 hole nozzles to apply the second application of spring N around the jointing stage. In this example, the pass was made at an angle to the planted rows.

Close inspection revealed significantly increased scorch where the streams narrowed as a result of the combination of wind and forward speed. The final result appeared to be most of the liquid N was delivered to about 1/3 of the surface of the crop.

Burnt wheat Burnt wheat

Multi-hole caps produce smaller droplets than a stream bar, this results in more leaf retention on the wheat and additional leaf tissue injury. Research shows that leaf injury translates into yield loss. As illustrated in the photo to the right, streams of nitrogen also collide when using the multi-hole caps, which further adds to the leaf injury problems.

Multi-hole caps are height dependant. When operating on rolling ground, it's difficult to hold the boom at a consistent height above the crop. Height variations can result in 2-3 streams hitting the ground in the same area, which also results in 10-15" areas of the ground which receive no nitrogen at all. As expensive as nitrogen is, it must be applied accurately and uniformly. A set of multi-hole caps don't achieve this goal.

The Solution

Learn more about stream bars – watch our youtube videos below

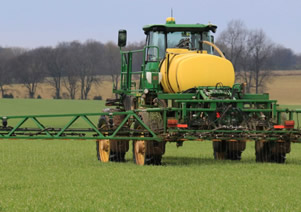

Most producers or dealers own mounted, trailed or self-propelled sprayers. Most of these sprayers can be equipped with stream bars to allow accurate and uniform liquid fertilizer application. We sell stream bars for many different brands and configurations of sprayers around the world and some are illustrated below. If you have questions regarding specific configurations, please call or email us.

When you order stream bars, we will need to know the following information to help us determine the optimal configuration and maintain the ideal application rate and pressure range.

  • Nozzle spacing: (15" or 20" for example)
  • Spraying speed: (We need an approximate operating speed range, for example 10-12mph)
  • Application Rate Range: (For example, 12-20 gallons per acre of 28% nitrogen)
  • Sprayer Plumbing Brand: (For example, Spraying Systems, Hardi, etc)

Benefits Of Stream Bars

  • Accuracy Stream bars are designed to evenly apply liquid fertilizers such as 28%, 30% or 32% nitrogen to wheat and other crops. Each of the four outlets on the stream bars are ported to ensure consistent delivery of fertilizer over the range of operating pressures.
  • Excellent for no-till  Stream bars deliver concentrated streams at equal distances, minimizing the amount of N tied up on residue, compared to the 3 hole nozzles (and especially flat fan nozzles) which increase the coverage on surface residue (in addition to the wheat leaves). 3 hole nozzles (and flat fan nozzles) also increase the amount of N which is tied up on surface residue and also potentially increase the N losses via volatilization.
  • Unaffected by boom height Stream bars produce vertical streams of fertilizer with no overlap, so product application is unaffected by boom height.
  • Minimal leaf scorch Stream bars deliver streams of fertilizer, so contact with the crop is minimized. High rates of nitrogen can be applied in one pass with minimal leaf injury, even on windy days.
  • Available for 15" and 20" spacing Stream bars are available to fit most sprayers around the world and are available in 15" and 20" spacing.
  • Adaptable for different product rates By using orifices, the operating sprayer pressure can be maintained within the 25 to 50psi range.
Stream Bars Stream Bars

See the Chafer stream bars in action and watch how uniformly they apply nitrogen to a wheat crop later in the spring

Stream bars provide uniform delivery of fertilizer despite windy conditions or rolling ground.

Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars
  • Stream Bars

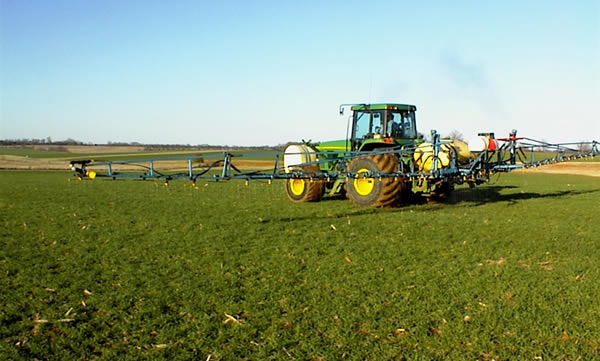

Growers with wet soils in the early spring, should consider wider tires or floater tires to enable them to apply nitrogen in a timely fashion.

Stream bars are available in 15" or 20" spacing to maximize yields.

For more information, together with pricing – please click the link below.
